How To remove and install Upper Control Arms

I couldnt find a thread so that inspired me to create one, I hope this helps out! It actually was a simple project to do.

TOOLS needed:
21mm,18mm,15mm,13mm wrenches; 10mm, 13mm, 18mm sockets, ratchet and extensions; a mallet, vise grips, PB blast and pickle fork.


After raising car and placing on jack stand and removing tire, use the 18mm and 21mm to remove the bolt holding the strut to lower control arm. The nut is 18mm and bolt is 21mm.


Next you will need the 18mm wrench to remove the nut from the upper control arm. I had to use the mallet to break the nut free (just be careful not to hit car).


Then i used the pickle fork to pry the 2 apart which will cause this and since I was replacing them i couldnt care less.


Then use the 13mm to remove the three nuts holding top strut in place and the remove whole strut to provide more space to work in.

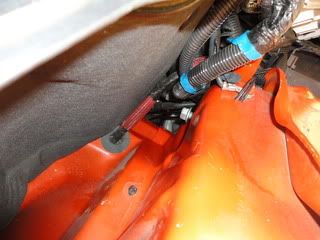

Next locate the the bolt heads on inside of the engine bay. They are 18mm.

This one is under all the cables leading to computer.

For optimum space you may want to remove the strut brace.


After removing the bolts the old upper control arm will be ready to remove and the new one installed!



After all this just reinstall everything and insure all your bolts and nut are tight! I didnt have torque specs so I used my own PFT (Pretty F'n Tight)!
__________________
"The same prudence which in private life would forbid our paying our own money for unexplained projects, forbids it in the dispensation of the public moneys." - Thomas Jefferson
Still Stock.... For Now.

Last edited by dellagratti; 03-10-2011 at 11:02 PM.
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2
Old 03-10-2011, 11:11 PM
mnunes's Avatar
mnunes mnunes is offline
Supporting Member (Lifetime)
Lifetime Supporting Member

Join Date: Jun 2005
Location: Fountain Valley, CA
My Charger: 2006 RT w/ R&T
Posts: 7,446
Thanks: 0
Thanked 4 Times in 3 Posts
Nice write-up. Did you replace the upper control arm due to front-end clunk? Did it help?
__________________

How do I.... EVERYTHING!
Reply With Quote Quick reply to this message
  #3
Old 03-10-2011, 11:34 PM
dellagratti's Avatar
dellagratti dellagratti is offline
Senior Member

Join Date: Apr 2009
Location: San Diego via Va Beach
Posts: 441
Thanks: 1
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by mnunes View Post
Nice write-up. Did you replace the upper control arm due to front-end clunk? Did it help?
the clunk and that the boots were torn n no grease existed in boots which i discovered last weekend while installing the coilovers, i still need to do the rear end links cuz they are dry rotted bad. i havent driven it yet i made this, dinner, watced tv and spoke to the mom. i will drive in a lil while and give an update to the noise factor.
Reply With Quote Quick reply to this message
  #4
Old 03-11-2011, 01:22 AM
dellagratti's Avatar
dellagratti dellagratti is offline
Senior Member

Join Date: Apr 2009
Location: San Diego via Va Beach
Posts: 441
Thanks: 1
Thanked 0 Times in 0 Posts
so after a test drive the clunk noise from pass side is gone! what i saw after examing the oem boot to moog boot i noticed the oem one doesnt have anything on the bottom to prevent grease loss (if it does its long since gone) but the moog does.
Reply With Quote Quick reply to this message
  #5
Old 05-23-2011, 04:18 AM
GLHS837's Avatar
GLHS837 GLHS837 is offline
Super Moderator
Lifetime Supporting Member

Join Date: Jan 2005
Location: Very Southern Maryland
Posts: 14,974
Thanks: 1
Thanked 5 Times in 5 Posts
I will add you can do this without removing then strut. Less access, but not too bad.
__________________
"For a mechanic, you seem to do an excessive amount of thinking."
―C-3PO, to R2-D2
Reply With Quote Quick reply to this message
  #6
Old 05-23-2011, 05:40 AM
Manicmechanic's Avatar
Manicmechanic Manicmechanic is offline
Senior Member

Join Date: Jul 2006
Location: Broken Arrow, OK
Posts: 1,741
Thanks: 0
Thanked 1 Time in 1 Post
Torque Specs are:
55 ft. lbs for the body mounting bolts.
35 ft. lbs. + 90* (Deg.) for the nut on the ball joint.
A-Arms are not interchangeable between RWD and AWD cars.
__________________
2006 Torred Daytona # 1988 Tunable 2-3/4 Exhaust,Remote 996XT GPS Scanner, SRT Wheels/Legmaker modded, BC Racing Coilovers, Demon Eyes Front/Rear, Silverstars, V-1 Hardwired, SRT Brakes, RK Sport Hood. PaddleShifters, '09 MYGIG. I still open the car door for my Wife, so she doesn't scratch the paint with her nails! You can learn a lot watching Counting Cars and American Restoration, but not about Chargers. For that we have this forum.
Reply With Quote Quick reply to this message
  #7
Old 05-23-2011, 06:05 AM
sector 2's Avatar
sector 2 sector 2 is offline
Senior Member

Join Date: Aug 2008
Location: N 21*22.785 /W 157*45.970
Posts: 1,516
Thanks: 2
Thanked 1 Time in 1 Post
Great write up, bro. Just had mine changed out...both ball joints were fried. I went w/ SPC adjustable arms. Had I known all this, woulda done it myself and saved 200 bones!! Anyways, SPC set up is nice as the alignment is done from the ball joint itself...and unlike the stock set up, the ball joint is serviceable. My Pedders set up really screwed up my alignment, now all is well......hey MNUNES....put this on your everything thread.
__________________
2013 Charger R/T: (Super Track Pack, Forged Aluminum Wheels) DS catch can / Mopar CAI / SLP Loud Mouth II /powder coated calipers & R1 brake package {slotted rotors - Stop Tech pads - SS lines} ACES IV & QB oils....
Gone and missed...2007 RT


Marine Corps Combat Vet Plates...Live Free Or Die!!
Reply With Quote Quick reply to this message
  #8
Old 05-23-2011, 06:18 AM
GLHS837's Avatar
GLHS837 GLHS837 is offline
Super Moderator
Lifetime Supporting Member

Join Date: Jan 2005
Location: Very Southern Maryland
Posts: 14,974
Thanks: 1
Thanked 5 Times in 5 Posts
Its already there
Reply With Quote Quick reply to this message
  #9
Old 05-24-2011, 04:08 AM
sector 2's Avatar
sector 2 sector 2 is offline
Senior Member

Join Date: Aug 2008
Location: N 21*22.785 /W 157*45.970
Posts: 1,516
Thanks: 2
Thanked 1 Time in 1 Post
......duh....hello McFly!!
Reply With Quote Quick reply to this message
  #10
Old 05-24-2011, 12:26 PM
D's 08 RT's Avatar
D's 08 RT D's 08 RT is offline
Senior Member

Join Date: Jan 2008
Location: american canyon,ca.
Posts: 219
Thanks: 0
Thanked 0 Times in 0 Posts
Smile

Nice write up . There's another way to release the spindle w/o damaging the boot if your just doing a spring /coilover swap. In the third picture you can see a round flat spot on the spindle,loosen the nut holding the ball joint,but don't completely remove it, then get a large ballpein hammer and hit the flat spot sharply several times and the ball joint stud will release from the spindle,D.
